U-PVC Pneumatic Actuation Ball Valves

( UH-PVC Actuator Valves / U-PVC Pneumatic Actuation Valves )


Code Dia PN Kg/Pie
318000202 20 1/2" 16 0,61
318000252 25 3/4" 16 0,66
318000322 32 1" 16 0,715
318000402 40 1 1/4" 16 1,55
318000502 50 2" 16 1,785
318000632 63 2" 16 2,23
318000752 75 2 1/2" 16 3,435
318000902 90 3" 16 6,44
318001102 110 4" 16 9,195

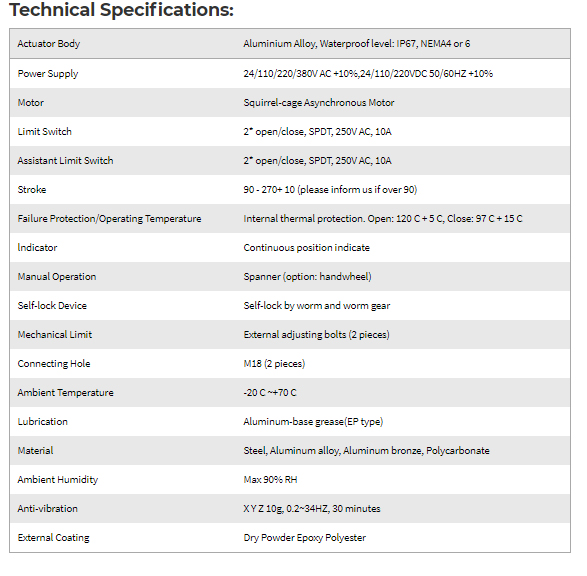

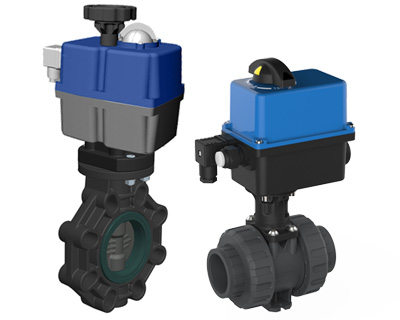

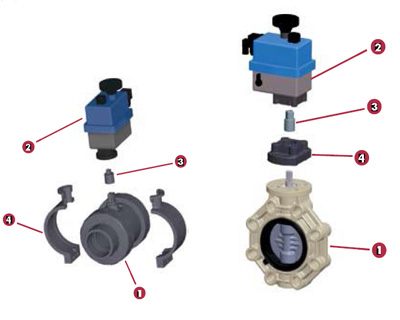

Electric Actuation


  • Electric actuators J+J and Valpes.
  • Available voltages :
  • J+J -
    • 12-48 V AC-DC
    • 80-240 V AC-DC
  • Valpes -
    • 12-24 V AC-DC
    • 115-230 V AC
  • Manualoverride and visual position indicator
  • Torque Limiter.
  • BSR safety lock.
  • Digital Positioner System. 4-20 mA o 0-10 V.

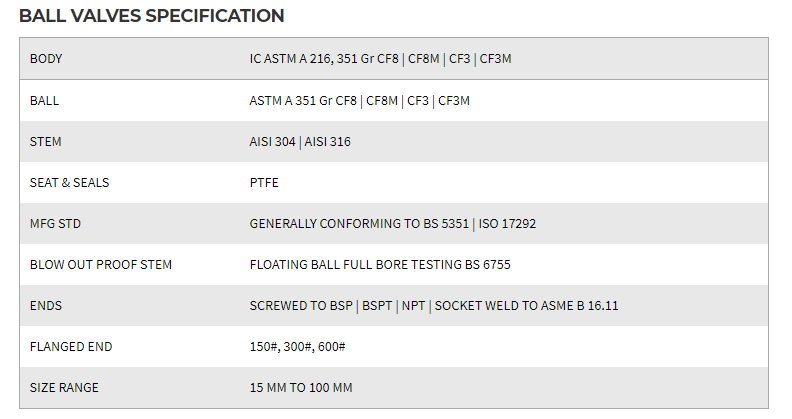

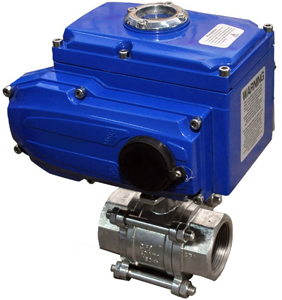

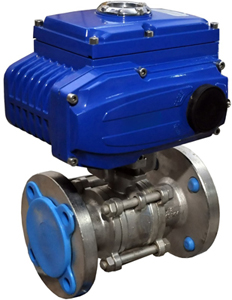

Electrically Operated Ball Valve


Varad Engineers is the dealer of ELECTRICALLY BALL VALVE. Its popular among clients because of its long lasting life Performance and coustomers trust on our products. While talking about electric ball valves, we need to know that the valves are not electric but the actuators used for operations are electric. There are two types of electric ball valves available at Varad Engineers 2-way valve and 3-way valves. The 2-way ball valves with electric actuators are used for basic on and off applications. These valves are available in many different materials like PVC, Brass, Ni Plated Brass, No lead Brass, Stainless steel, CS or SS, PFA lined DI, etc. The 3-way Electric ball valves are used for diverting purposes like bypass lines or input or output line selectors. These valves also come with different materials and actuator types like PVC, Brass, T-clamp, Stainless steel, CS or SS, etc. These Electric Ball Valve are available at very economical cost and are reliable for a very long period. They are very convenient to use and that’s why the first choice of plumbers. Visit Concorde and buy the electric ball valve of your requirement.

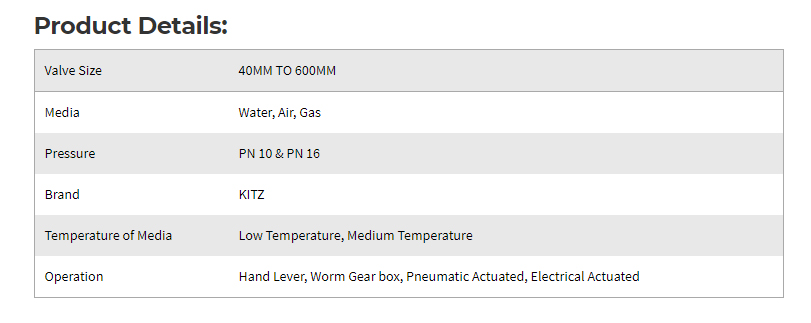

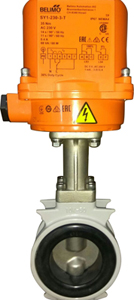

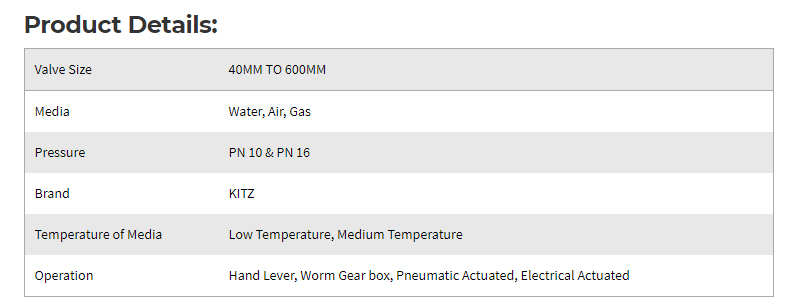

Electric Kitz Aluminium Butterfly Valves


Butterfly valves with electric actuator are small in size and light in weight with a compact design. They work completely opposite from their size and offers a high range of output torque. Electric operators offer a reliable method of using the valve even from the remote locations. And that’s why Electric Butterfly Valves are famous among users. These valves are generally used for basic ON/OFF services but they can be used successfully for choking the water flow. These valves are operated by simply rotating a disc shaped obstructer to 90 degrees. When the slim profile disc is parallel to the flow, the valve is open and when it is rotated for 90 degrees in the perpendicular position of the flow, the valve gets closed. We have the exclusive stock & are the trader of ELECTRIC BUTTERFLY VALVES..

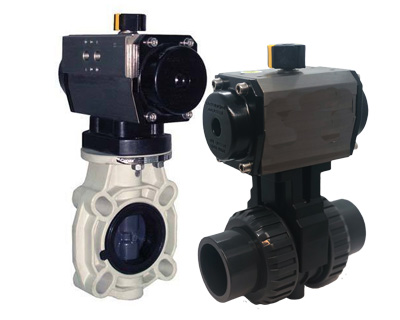

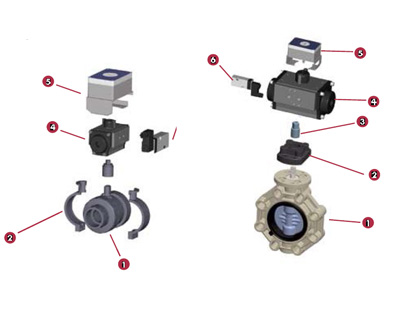

Pneumatic Actuation


  • Electric actuators J+J and Valpes.
  • Available voltages :
  • J+J -
    • 12-48 V AC-DC
    • 80-240 V AC-DC
  • Valpes -
    • 12-24 V AC-DC
    • 115-230 V AC
  • Manualoverride and visual position indicator
  • Torque Limiter.
  • BSR safety lock.
  • Digital Positioner System. 4-20 mA o 0-10 V.

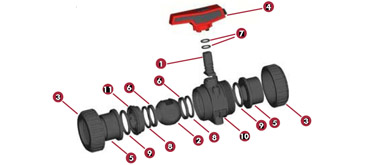

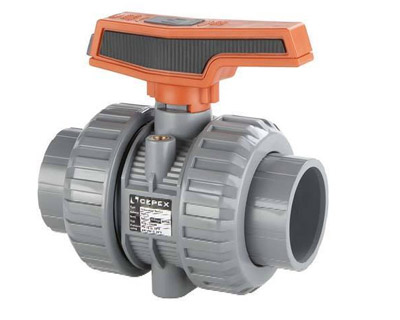

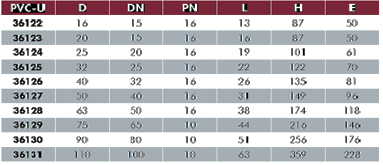

Ball Valves - [IND] Series


  • 100% Factory Tested.
  • Minimal pressure drop.
  • Low operating torque.
  • Excellent flow charecteristics.
  • Threaded seal-carrier for upstream maintenance without emptyinng the system. Handle built-in tool for easy adjustment of the threaded seal carrier(and ball torque).
  • Sizes from : D16 to D125
  • Available standards : Metric, ASTM, British standard, JIS.
  • Threaded versions : BSP & NPT.
  • O-Rings available in food grade EPDM or viton.
  • Ball seat in HDPE & PTFE.

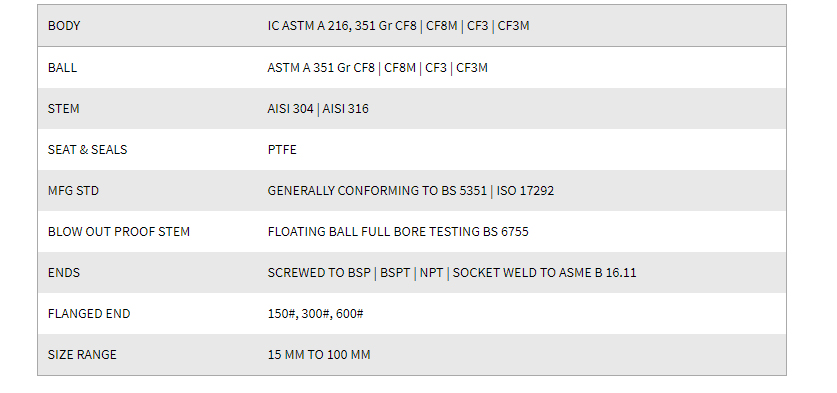

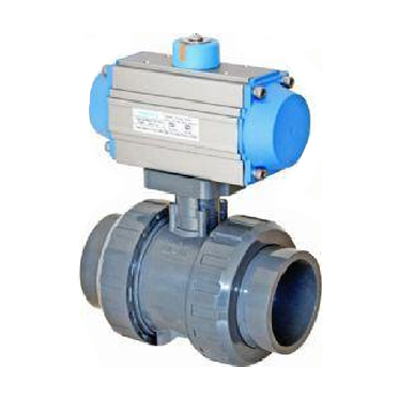

Pneumatic Ball Valve


Varad Engineers is one of the authorized dealer of PNEUMATIC OPERATED BALL VALVE engineered for multiple ON/OFF operation in the down stream. Its popular among clients because of its long lasting life performance and coustomers trust on our products.Varad Engineers is serving as the authorized dealer of Pneumatic Ball Valve & Pneumatic Butterfly Valves for many years. Ball valves are basically quarter turn (rotatory) or straight through (linear) valves that contain a steel ball in the core that rotates to lock and unlock the valve.These valves are used when there is a need of tight seal on anything.Talking about Pneumatic Ball Valve, these valves are generally the rotatory valves and create the open and closed position by moving the stem to 90 degrees. These valves give a long-lasting performance and are a one-time investment for many years. We provide all variety of kitz valves products in Mumbai, India.

  • On / OFF Indicator.
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage.
  • I/P Transducer (Convertor).
  • Excellent flow charecteristics.
  • Pneumatic valve positioner.
  • Electro-Pneumatic valve positioner
  • Declutchable Manual Over - ride.
  • Limit Switches for On / Off Indication at Panel board.
  • Filter + Regulator Combination with Pressure Gauge.
  • Air Lock Valve.

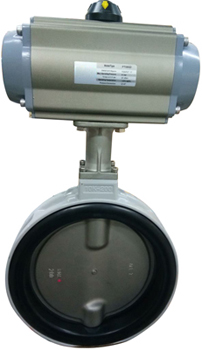

Pneumatic Kitz Aluminium Butterfly Valves


We have the exclusive stock & are the trader of PNEUMATIC OPERATED BUTTERFLY VALVES, ALUMINIUM BUTTERFLY VALVE from sizes ranging from 40mm to 200mm ready stock.
