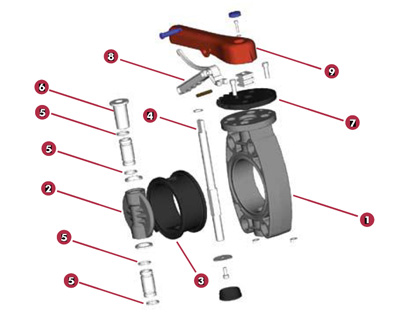

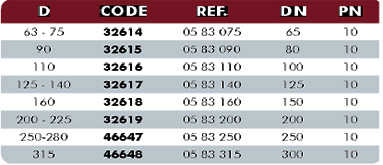

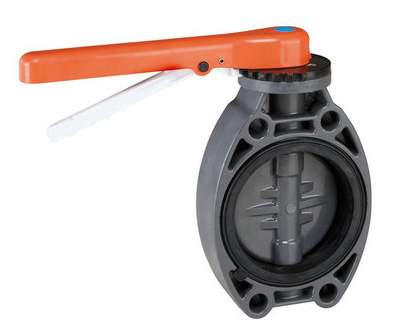

Butterfly Valves - Standard Series


  • Ideally suited for flow control using minimal piping space.
  • 100% Factory Tested.
  • Minimal pressure drop.
  • Resistance to many inorganic chemicals.
  • Excellent flow charecteristics.
  • Good mechanical strength.
  • One piece PVC-U body.
  • Sizes from : 63mm to 315mm (2"-12")
  • Available standards : ISO/DIN, ANSI/ASTM, British Standard, JIS.
  • Rubber seal available in EPDM or Vitron.
  • Non-wetted zinc plated steel shaft.
  • Ideally suited for irrigation and swimming pools.

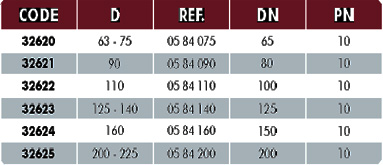

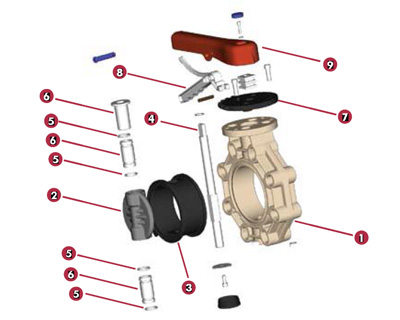

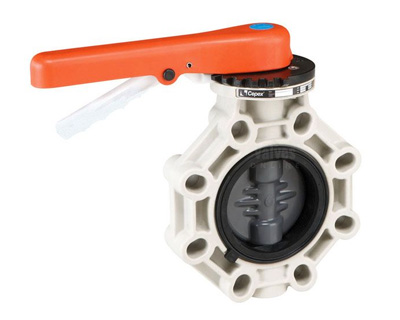

Butterfly Valves - Industrial Series


  • Ideally suited for flow control using minimal piping space.
  • 100% Factory Tested.
  • Minimal pressure drop.
  • Low Maintenance
  • Resistance to many inorganic chemicals.
  • Excellent flow charecteristics.
  • One piece PP-GF body.
  • Sizes from : 63mm to 315mm (2"-12")
  • Available standards : ISO/DIN, ANSI/ASTM, British Standard, JIS.
  • Rubber seal available in food grade EPDM or Vitron.
  • Built in lockout feature to prevent undesired operation.
  • Electric and pneumatis actuators available and with gear box.
  • Disc available in different materials.
  • Non-wetted shaft in stainless steel.
  • Ideally suited for industrial, water treatment or water distribution applications.

PP Butterfly Valve Flange End

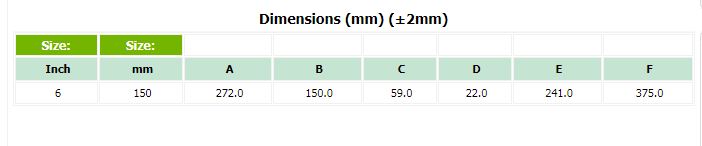

Technical Specification:


  • Single piece body.
  • As per manufacturer’s.
  • Flanged as per ASA 150#.

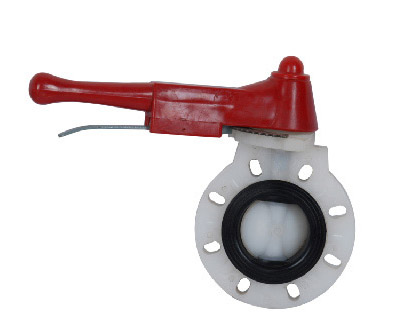

PP Butterfly Valves


PP Butterfly Valves are the most preferred choice among clients for regulating and isolating the flow of liquefied and gaseous materials in various industrial high pressure applications.
These valves are designed using premium quality polypropylene material in conformation with the industrial quality standards. The valves can be accessed in various sizes, shapes, thicknesses, dimensions and connection ends.
